KM Wiring Harness Replacement

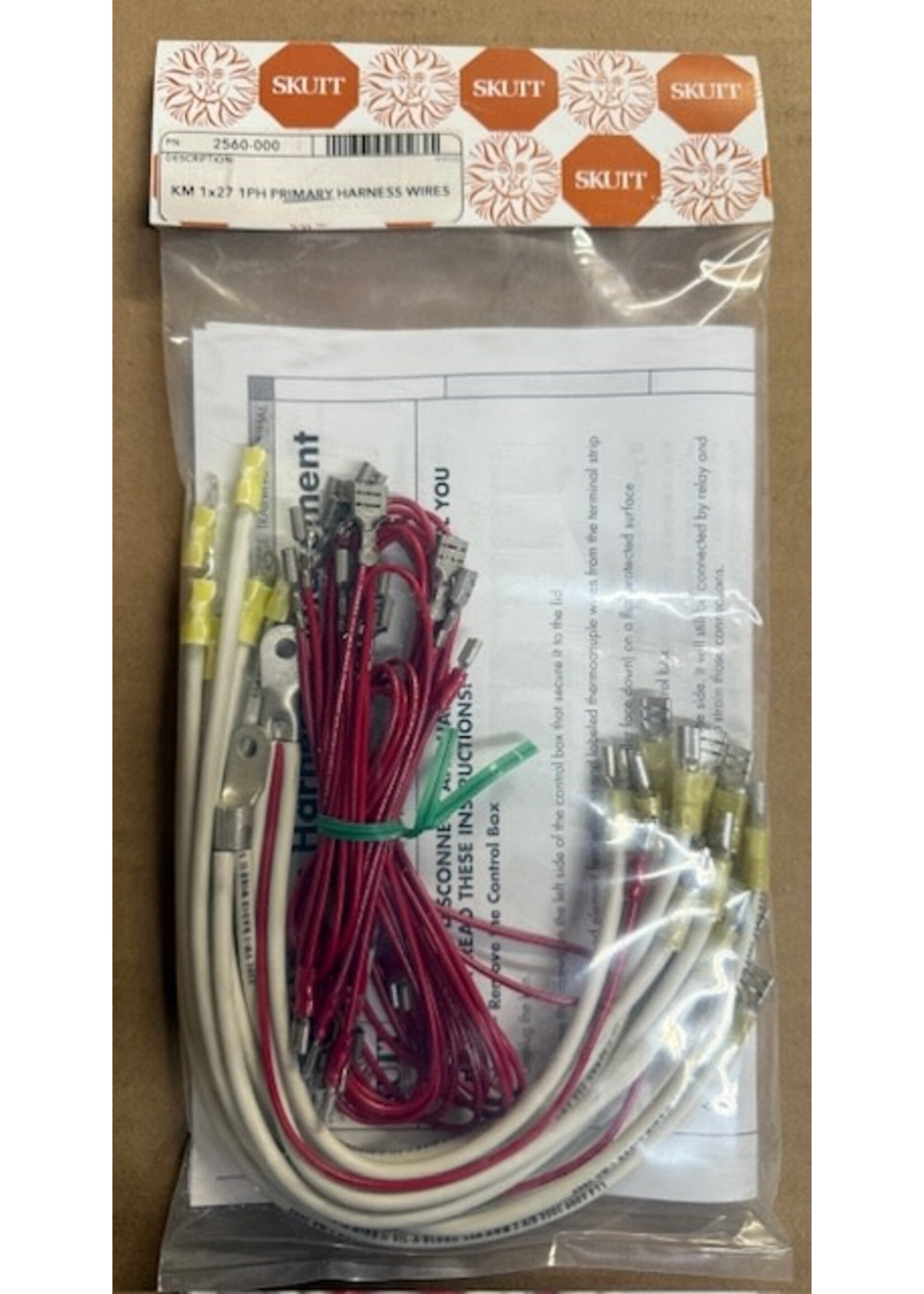

The KM Wiring Harness includes all of the control wires and wires to and from the relays. Basically all of the wiring behind the heat baffle except for the power cord. In April of 2009 we increased the gauge of these wires. This resulted in the relays running a little cooler and thus extending their life. Therefore, it is a good idea to replace these wires in older kilns when you are replacing relays. The wiring diagrams will vary based on the controller version and Kiln Model. All of these configurations can be found in the document to the left.
